- Voltage Tester

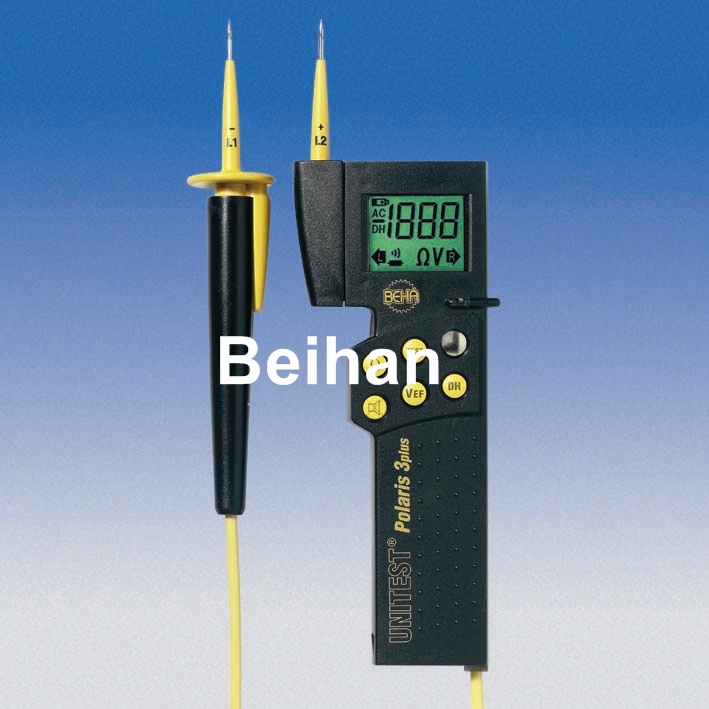

6733 UNITEST Polaris 3 plus
Model:6733
UNITEST Polaris 3 plus
• Voltage and Continuity Tester
• with Rotary Field Indicator and Resistance Measurement
• Contactless voltage indication, quick detection of line interruptions in accessible cables, e.g. cable reels.
• Patented, rotary field indicator (no third hand required)
• Single pole test for phase detection• Indication of polarity
Details
UNITEST Polaris 3 plus
Model: 6733
Voltage and Continuity Tester
with Rotary Field Indicator and Resistance Measurement
Key Functions
• Voltage measurement
• Contactless voltage indication, quick detection of line interruptions in accessible cables, e.g. cable reels.
• Resistance measurement
• Optical and acoustical continuity test
• Patented, rotary field indicator (no third hand required)
• Single pole test for phase detection• Indication of polarity
General Information
• Additional display for voltages > 50 V
• Convenient and safe for carrying in pockets, no danger of injury
• Automatic, internal load (also for tripping 30 mA RCD)
• Large, easy-to-read LCD
• Backlight
Special Features
• Clip-back Test-probe - no more broken or bent contact probes
• Convenient and safe for carrying in pockets, no danger of injury
• Switchable tone on/off for all measurement functions with acoustical signal
Technical Data
Model: 6733
Voltage and Continuity Tester
with Rotary Field Indicator and Resistance Measurement
Key Functions
• Voltage measurement
• Contactless voltage indication, quick detection of line interruptions in accessible cables, e.g. cable reels.
• Resistance measurement
• Optical and acoustical continuity test
• Patented, rotary field indicator (no third hand required)
• Single pole test for phase detection• Indication of polarity
General Information
• Additional display for voltages > 50 V
• Convenient and safe for carrying in pockets, no danger of injury
• Automatic, internal load (also for tripping 30 mA RCD)
• Large, easy-to-read LCD
• Backlight
Special Features
• Clip-back Test-probe - no more broken or bent contact probes
• Convenient and safe for carrying in pockets, no danger of injury
• Switchable tone on/off for all measurement functions with acoustical signal
Technical Data
|
Display
|
3 1/2digit, LCD
|
|
Voltage Range/Resolution
|
1…700 V / 1 V AC/DC
|
|
Test Current (Voltage)
|
< 3.5 mA (700V)
|
|
Auto-Power-On
|
from 1V AC/DC
|
|
Frequency Range Voltage Meas.
|
0…400 Hz
|
|
Frequency Range Phase Rotation Identification
|
50…60 Hz
|
|
Polarity Indication
|
all ranges
|
|
Continuity Test
|
0…200 kΩ
|
|
Test Current
|
5 µA
|
|
Resistance Range/Resolution
|
1…1999 Ω/1Ω
|
|
Voltage Range for contactless indication
|
100...700V AC
|
|
Operation Time
|
max. 30 s
|
|
Measurement category
|
CAT III, 700 V
|
|
Safety complying with
|
IEC61243-3, EN61243-3,
DIN VDE 0682-401, IEC61010, EN61010
|
|
Protection Degree
|
IP50
|
|
Power Supply
|
1 x 9 V, IEC 6LR61
|
|
Dimensions
|
180 x 80 x 36 mm
|
|
Weight
|
approx. 250 g
|
