- Phase Detector/ Rotary Field Indicator

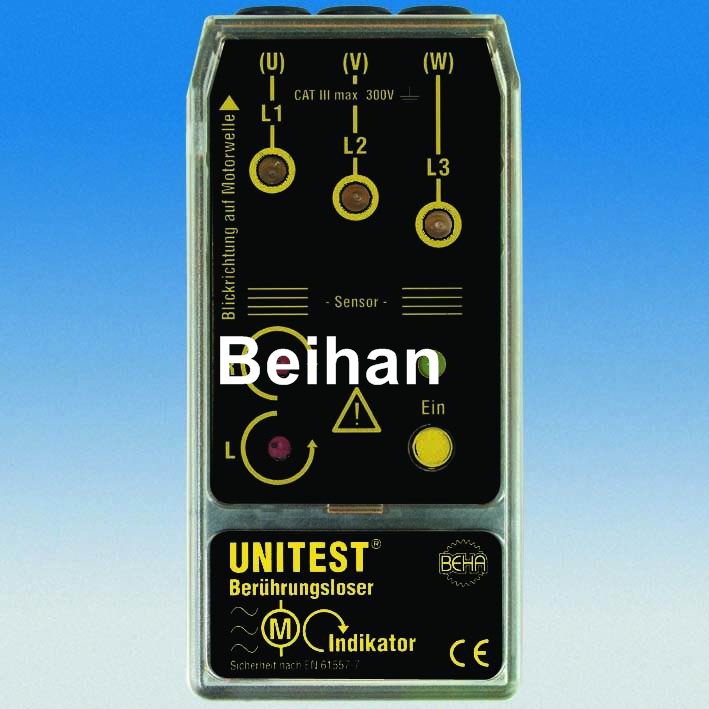

9062 UNITEST M-Indicator
Model:9062
UNITEST M-Indicator 9062
Motor rotation and rotary field indicator with contact-free detection
Three-in-one Tester:
1. Rotary Field Indicator – indication of the three phases via LED
2. Motor Rotation Indicator - Display of motor rotation direction
3. Contact free determination of the rotation direction of running motors
Details
UNITEST M-Indicator
Model: 9062
Motor rotation and rotary field indicator with contact-free detection
Key Functions
• Three-in-one Tester:
1. Rotary Field Indicator – indication of the three phases via LED
2. Motor Rotation Indicator - Display of motor rotation direction
3. Contact free determination of the rotation direction of running motors
General Information
• Swift determination of the rotary field as for conventional rotary field indicators
• Magnetic field detection to detect AC solenoid valve
Special Features
• Contact-free determination of rotation direction of running motors. Ideal if motor shafts are not visible or difficult to access. (i.e. circulating pumps)
• Voltage free and safe detection of three phase motor connectors (UVW)
• Indicates the motor rotation before starting the motor
Model: 9062
Motor rotation and rotary field indicator with contact-free detection
Key Functions
• Three-in-one Tester:
1. Rotary Field Indicator – indication of the three phases via LED
2. Motor Rotation Indicator - Display of motor rotation direction
3. Contact free determination of the rotation direction of running motors
General Information
• Swift determination of the rotary field as for conventional rotary field indicators
• Magnetic field detection to detect AC solenoid valve
Special Features
• Contact-free determination of rotation direction of running motors. Ideal if motor shafts are not visible or difficult to access. (i.e. circulating pumps)
• Voltage free and safe detection of three phase motor connectors (UVW)
• Indicates the motor rotation before starting the motor
Technical Data
|
Voltage Range
|
1...440 V AC
|
|
Phase Display
|
120...440 V AC
|
|
Frequency range
|
2...400 Hz
|
|
Test Currents
|
< 3.5 mA
|
|
Operation time
|
continuous
|
|
Pollution Degree
|
2
|
|
Measurement category
|
CAT III / 300 V
|
|
Protection Degree
|
IP 40
|
|
Safety Complying with
|
IEC 61010 / EN 61010
IEC61557-7 / EN61557-7
|
|
Power Supply
|
1 x 9 V, IEC 6 LR 61
|
|
Dimensions
|
124x61x27mm
|
|
Weight
|
approx. 150 g
|
Scope of Supply:
1 pc UNITEST M-Indicator
3 pc Test Probes
3 pc Crocodile Clamps
3 pc Safety Test Leads
1 pc Battery 9 V, IEC 6LR61
1 pc Instruction Manual
