97015 Digital HV Insulation Tester
Model:97015

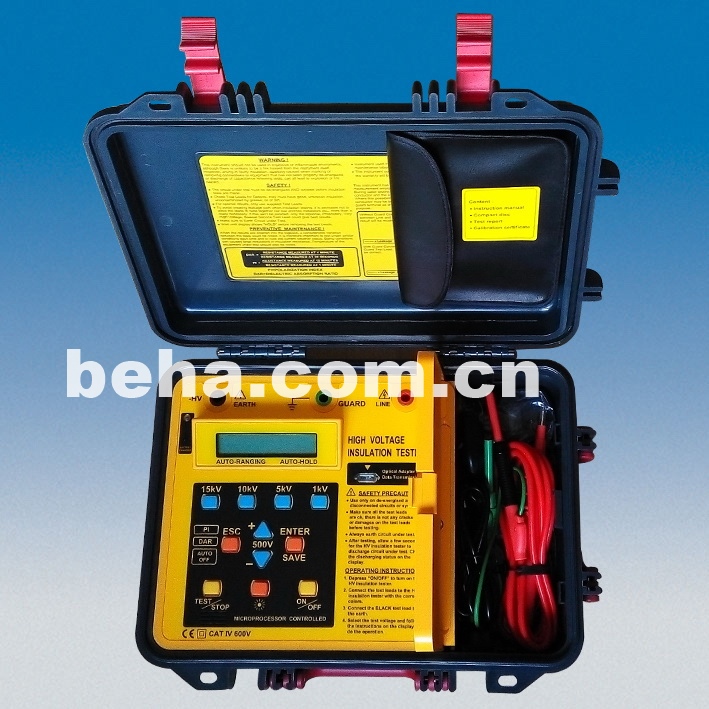

BEHATEST 97015 Digital Variable High Voltage Insulation Tester
Test Voltage: 500V-15kV(△U=500V)
Measuring Range: to 2TΩ
Short-circuit current up to 5mA
DAR Test
PI Test
Voltmeter: AC/DC 600V
USB data transmission
Details
15kV Digital Variable High Voltage Insulation Tester
Model: 97015
Test Voltage: 500V-15kV(△U=500V)
Measuring Range: to 2TΩ
DAR Test
PI Test
Voltmeter: AC/DC
Calendar
USB data transmission
Introduction:
◆This is a variable high voltage insulation tester from 500V to 15kV in 500V steps.
◆The is menu driven and uses Dynamic Current Auto ranging technology.
◆It has a Bar-Graph which displays the voltage stressing the insulation while the test is in progress and the voltage decay during the automatic discharge of the tested circuit.
◆The top line of the display shows the elapsed time at the start of the test. Digital readout of the total time will remain displayed even after testing has ceased.
◆A 4-digit display (2000 counts) is showing the actual insulation resistance.
◆This instrument displays a voltage warning and sounds when AC or DC is present before injecting the test voltage.
Features:
● Test voltages : 500V-15kV (△U=500V)
● Test Insulation Resistance up to 2 TΩ (2000GΩ).
● Short-circuit current up to 5mA
● Microprocessor controlled.
● 2x16 characters large, high contrast, intelligent LCD module.
● Backlight function.
● PI (Polarization Index) indication.
● DAR (Dielectric Absorption ratio) indication.
● Auto-ranging on all insulation ranges.
● Menu driven.
● Bargraph indicates test voltage, rise and decay can be observed.
● Visual and audible warning if external voltage is present. (≥30V/AC/DC)
● Auto-hold function to freeze the reading.
● Overload protection.
● Adjustment for testing time (duration) : 1~30 minutes.
● AC/DC Voltmeter. up to 600V
● Auto-off.
● Calendar and Time
● Optical USB to RS-232 data transmission.
● 200 measurement results can be saved in the memory and recalled on the display.
● Safety standard: EN 61010-1 / EN 61326-1/ CAT IV 600V
Technical Data:
Scope of Supply:
1 pc H.V. Insulation Tester 97015
1 set Test leads
1 pc data cable for USB port
1 pc Compact disk (CD) for PC interface
1 pc Charger (24V)
1 pc Instruction Manual
◆This is a variable high voltage insulation tester from 500V to 15kV in 500V steps.
◆The is menu driven and uses Dynamic Current Auto ranging technology.
◆It has a Bar-Graph which displays the voltage stressing the insulation while the test is in progress and the voltage decay during the automatic discharge of the tested circuit.
◆The top line of the display shows the elapsed time at the start of the test. Digital readout of the total time will remain displayed even after testing has ceased.
◆A 4-digit display (2000 counts) is showing the actual insulation resistance.
◆This instrument displays a voltage warning and sounds when AC or DC is present before injecting the test voltage.
Features:
● Test voltages : 500V-15kV (△U=500V)
● Test Insulation Resistance up to 2 TΩ (2000GΩ).
● Short-circuit current up to 5mA
● Microprocessor controlled.
● 2x16 characters large, high contrast, intelligent LCD module.
● Backlight function.
● PI (Polarization Index) indication.
● DAR (Dielectric Absorption ratio) indication.
● Auto-ranging on all insulation ranges.
● Menu driven.
● Bargraph indicates test voltage, rise and decay can be observed.
● Visual and audible warning if external voltage is present. (≥30V/AC/DC)
● Auto-hold function to freeze the reading.
● Overload protection.
● Adjustment for testing time (duration) : 1~30 minutes.
● AC/DC Voltmeter. up to 600V
● Auto-off.
● Calendar and Time
● Optical USB to RS-232 data transmission.
● 200 measurement results can be saved in the memory and recalled on the display.
● Safety standard: EN 61010-1 / EN 61326-1/ CAT IV 600V
Technical Data:
|
Test Voltage
|
From 500V to 15KV / DC
Adjustable in 500 V Steps
|
|
Preset Buttons
|
1KV, 5KV, 10KV, 15KV
|
|
Measuring Range
|
0-70GΩ (at 500V)
|
|
(Auto-Ranging)
|
0-2000GΩ (at 15kV)
|
|
Resolution
|
2 GΩ/0.001 GΩ
20 GΩ/0.01 GΩ
200 GΩ/0.1 GΩ
2000 GΩ/1 GΩ
|
|
Accuracy
|
0-2 GΩ ± (5% + 5 digits)
2-20 GΩ ± (2% + 3 digits)
20-200 GΩ ± (3% + 3 digits)
200-2000 GΩ ± 5(% + 5 digits)
|
|
Short circuit current
|
Max 5mA
|
|
Voltmeter/Resolution
|
0-600V / 1V / AC/DC
|
|
Accuracy
|
± (2% + 3 digits)
|
|
Power Source
|
Rechargeable battery
|
|
Dimension
|
435x 325 x 130 mm
|
|
Weight
|
Approx. 6kg
|
|
Safety complying with
|
EN 61010-1 / EN 61326-1
|
|
CAT IV
|
600V
|
Scope of Supply:
1 pc H.V. Insulation Tester 97015
1 set Test leads
1 pc data cable for USB port
1 pc Compact disk (CD) for PC interface
1 pc Charger (24V)
1 pc Instruction Manual
